Comfortable Observation with a Traditional Design
The Merger LRF series features six thermal imaging binoculars with an integrated precision laser rangefinder. Providing comfortable, fatigue-free observation through two-eyed observation whilst retaining the classic aesthetics of a traditional pair of binoculars. Each device in the series features a different European-made thermal sensor and objective lens to cater to the varying needs of our users. These include:
- The Merger LRF XP50, designed to offer excellent thermal sensitivity, making them ideal for use in unfavourable weather conditions.
- The Merger LRF XQ35 is best suited to those who are constantly on the move.
- The Merger LRF XP35 offers the widest FOV at 17.8° and is also the most compact entry in the Merger LRF series.
- The Merger LRF XL50 achieves HD thermal resolution, with unprecedented image detail throughout its entire magnification range.
- The Merger LRF XT50 is the premium addition the Merger LRF series, achieving an exceptional observation experience through its HD 1280×1024, 12µm thermal sensor and wide 17.5° FOV.
Compare Models
PULSAR MERGER
LRF XT50
The Merger LRF XT50 is the first pair of thermal imaging binoculars from Pulsar to feature a remarkable 1280×1024, 12µm, <40mK NETD thermal sensor and built-in image stabilisation. These features lend another level of clarity and stability and provide greater observation opportunities without any distractions. Fully kitted out with a wide range of digital functionalities and connectivity options, including a built-in still image and video recorder, Stream Vision 2 compatibility, and a precision laser rangefinder, these binoculars are perfect for long-range, comfortable observation.
Main Specifications:
| Sensor | 1208×1024, 12µm |
| sNETD | <20 mK |
| Objective Lens | 50mm f1.0 |
| Magnification | 2-16x |
| FOV | 17.5° |
| Detection Range | 2300m |
PULSAR MERGER
LRF XL50
The new Merger LRF XL50 is the first pair of thermal imaging binoculars to offer exceptional levels of thermal clarity throughout its entire magnification range thanks to its powerful 1024×768, 12µm, <40mK thermal sensor and powerful 50mm f1.0 objective lens. Combining this sensor with a powerful 50mm f1.0 objective lens, these binoculars will provide a detection range of up to 2300m, making them perfect for long-range detection.
Main Specifications:
| Sensor | 1024×768, 12µm |
| sNETD | <20 mK |
| Objective Lens | 50mm f1.0 |
| Magnification | 2.5-20x |
| FOV | 14° |
| Detection Range | 2300m |
PULSAR MERGER
LRF XP35
The Merger LRF XP35 is the smallest pair of thermal imaging binoculars in the Pulsar range, offering the largest FOV from any pair of Merger binoculars, unprecedented detection capabilities, and accurate distance measurements at a range of up to 1000 m.
Main Specifications:
| Sensor | 640×480, 17µm |
| sNETD | <18 mK |
| Objective Lens | 35mm f1.0 |
| Magnification | 2-16x |
| FOV | 17.8° |
| Detection Range | 1350m |
PULSAR MERGER
LRF XQ35
Expanding the Merger line of thermal imaging binoculars, the Merger LRF XQ35 offers incredible levels of thermal detail at a range of up to 1350m in a new, more compact and lightweight design that retains the classic aesthetics of a pair of standard daytime binoculars.
Main Specifications:
| Sensor | 384×288, 17µm |
| sNETD | <25 mK |
| Objective Lens | 35mm f1.0 |
| Magnification | 3-12x |
| FOV | 10.7° |
| Detection Range | 1350m |
PULSAR MERGER
LRF XP50
The new Merger LRF XP50 thermal imaging binoculars feature a 640×480, 17 µm thermal sensor, fast aperture 50mm f1.0 germanium lens, HD AMOLED display, advanced image processing algorithms, built-in still image and video recorder, stream vision 2 compatibility, and much more — all in a classic daytime binocular design.
Main Specifications:
| Sensor | 640×480, 17 µm |
| sNETD | <25 mK |
| Objective Lens | 50mm f1.0 |
| Magnification | 2.5-20x |
| FOV | 12.4° |
| Detection Range | 1800m |
European made
thermal imaging
sensors
The Merger LRF series has been designed to offer a premium thermal imaging experience across the entire product range, and it achieve this goal thanks to it European pedigree.
With strict EU regulations when it comes to safety and quality, each model in the series uses a professional-grade European made thermal imaging sensor to achieve unrivalled image clarity and thermal sensitivity.
- 1280×1024, 12µm and 1024×768, 12µm thermal sensors achieve high-definition image quality.
- 640×480, 17µm and 384×288, 12µm thermal sensors provide extreme thermal sensitivity.
Detailed thermal image
throughout its entire magnification
range
Each model in the Merger LRF series features the ability to zoom digitally, retaining high levels of image quality all the way through their magnification range. Models with HD sensors, such as the Merger LRF XL50 and the Merger LRF XT50 will achieve especially impressive quality retention at their highest zoom level, even when observing smaller objects, increasing the likelihood of detecting and identifying objects at long range. Advanced image processing algorithms enhance image quality further and ensure a sharp and detailed thermal image.
Enhanced situational
awareness with
wide FOVs
A wide field of view increases your situational awareness and optimises your ability to scan and search a larger observation area whilst reducing the occurrence of image shake and camera blur. This larger field of view, combined with exceptional image quality at base magnification, enhances viewing comfort and enables greater scene perception. At 17.8°, the Merger LRF XP35 features the widest field of view in the entire Merger LRF range.
Accurate distance measurements
with built-in precision
laser rangefinders
As their names suggest, each model in the Merger LRF series features a seamlessly integrated precision laser rangefinder, so you can ascertain the precise distance between you and your observed object or animal. With the ability to measure distances of up to 1500m with an accuracy of ±1m (depending on model), these LRFs will provide crucial distance data and allow for informed decision making in the field.

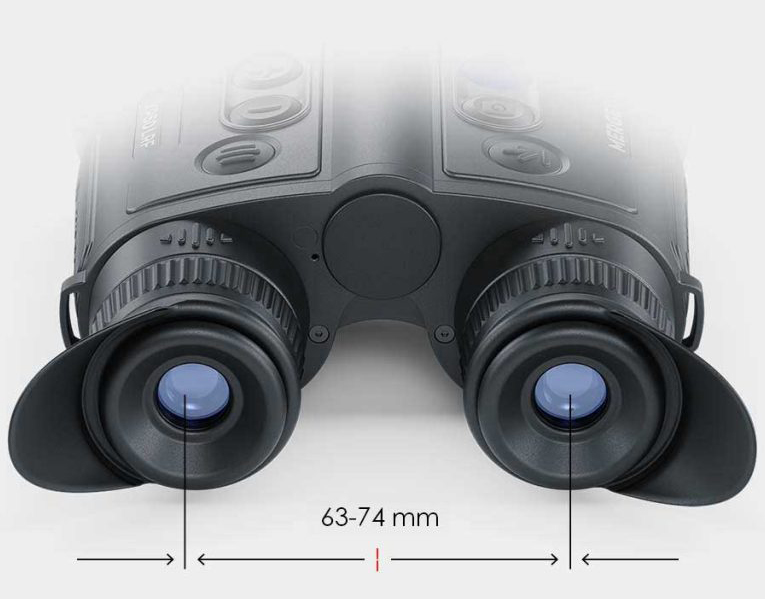

Adjustable interpupilary
distance for comfortable
two-eyed observation
The Merger LRF’s design takes into consideration the reduction of eye strain experienced when receiving visual information through two separate channels simultaneously, thus offering a better performance in low contrast scenarios than would be experienced whilst using a single-channel thermal monocular. Each model in the series features an adjustable interpupillary distance to match your preferences and enable fatigue-free observation.
Traditional binocular
aesthetics for a sense
of the familiar
Designed with a pair of classic daytime binoculars in mind, the Merger LRF binoculars provide a stunning thermal image whilst retaining a sense of familiarity in the hand through traditional binocular aesthetics. Ergonomically designed and with a small form factor, these thermal binoculars are comfortable to hold over long periods of observation. A convenient six button arrangement where the fingers would naturally lay offers control over all digital functionality, allowing for comfortable and effortless operation, even in darkness.
Hours of observation
with Pulsar’s dual
battery system
Pulsar’s intuitive dual battery system features an internal rechargeable battery (4 Ah capacity) and a removable and rechargeable battery (3.2 Ah), allowing you to keep your observations going for hours on end. Depending on model and temperature, the Merger LRF series can provide up to 10 hours of battery life on a single charge.
The Merger LRF series also features:
Choose from a selection 8 colour palettes
Built-in video recorder with audio & still imaging capture
Built-in image stabilisation (Merger LRF XT50 only)
Robust & durable magnesium alloy bodyshell
Extreme operating temperatures (from -25 to +50°C)
Stream Vision 2 app compatibility
Battery-saving proximity sensor
Picture-in-Picture mode (PiP)
Improved Wi-Fi connectivity (2.5/5 GHz)
Advanced image processing algorithms
